Tyre Pressure Monitoring System TPMS with Internal Sensors

Why we need the Tire Pressure Monitoring System?

Give you early warning of air leaks and other abnormal tire situations so corrective action can be taken and tire life can be extended,keeping your driving safe.

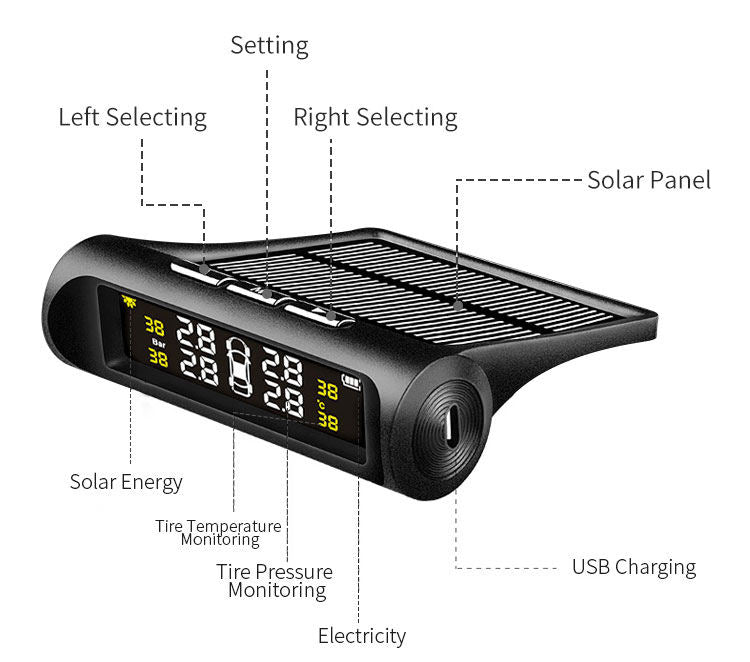

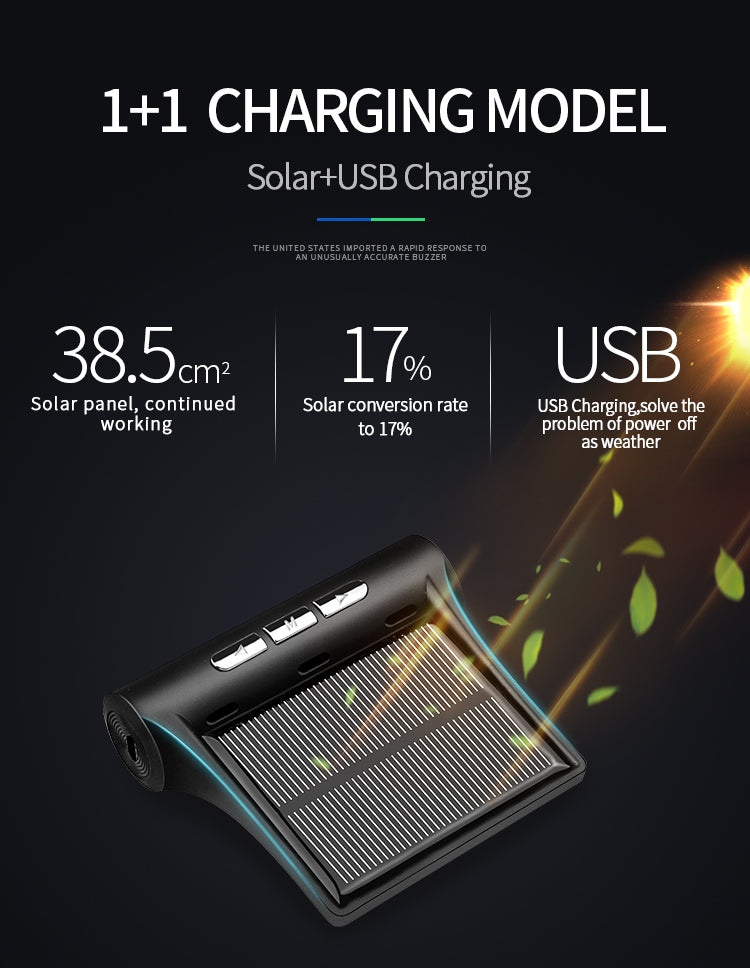

SOLAR POWER & USB CHARGING

Support USB cable charging, and solar charging. Efficient solar panel charging and built-in lithium battery(No need to replace),it does not occupy the car cigarette lighter socket, ensure the tire pressure monitoring system will work continuously.

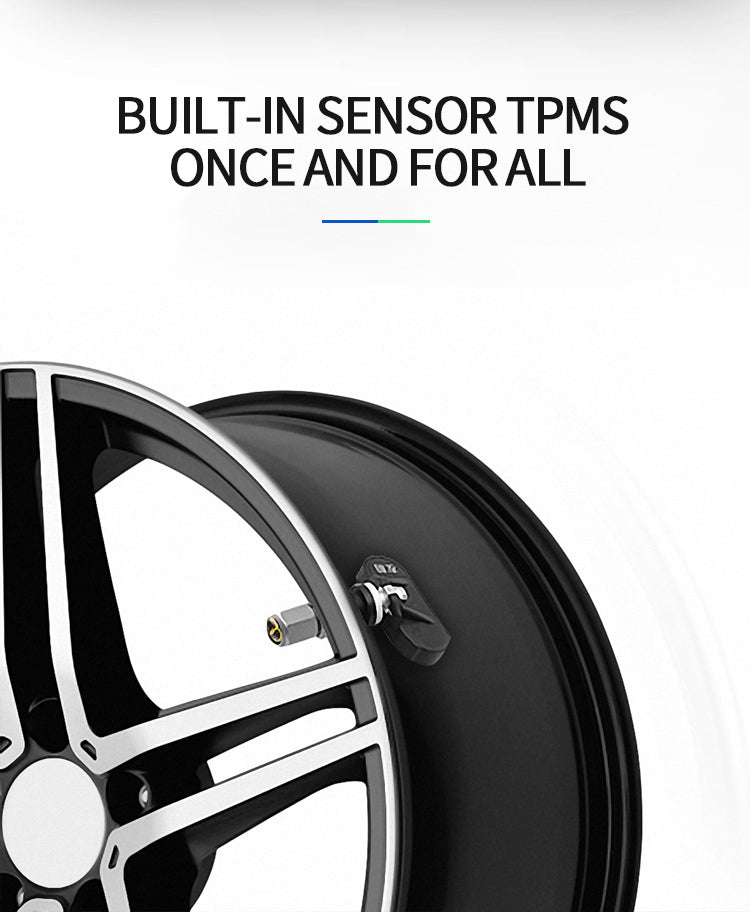

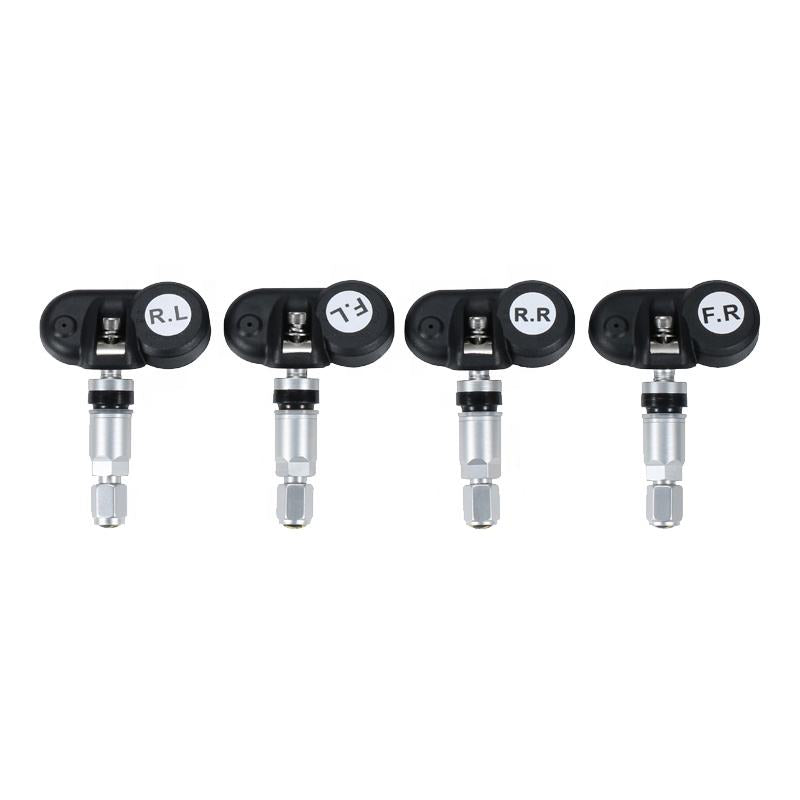

4 INTERNAL SENSOR

with USA-imported chip design for stable and accurate signal transmission, lightweight design for easy installation, and IP5K4K waterproof grade to withstand harsh climate conditions

REAL TIME MONITORING DISPLAY

Loud volume reminder, no matter where you install it, you can easily read the data and know your driving situation.

Product Specification:

Air pressure setting range:0~50psi / 0~3.58ar

Temperature setting range: 60℃~110℃ / 140ºF~230ºF

Working temperature: -20℃~80℃ / -68ºF~176ºF

Storage temperature: -30℃~85℃ / 86ºF~185ºF

Power-on voltage: DC 5V

Frequency: 433.92MHz±20.00MHZ

Package Include:

• 1x TPMS Monitor
• 4x Sensor
• 1x USB Cable
• 1x Hex spanner
• 1x Manual

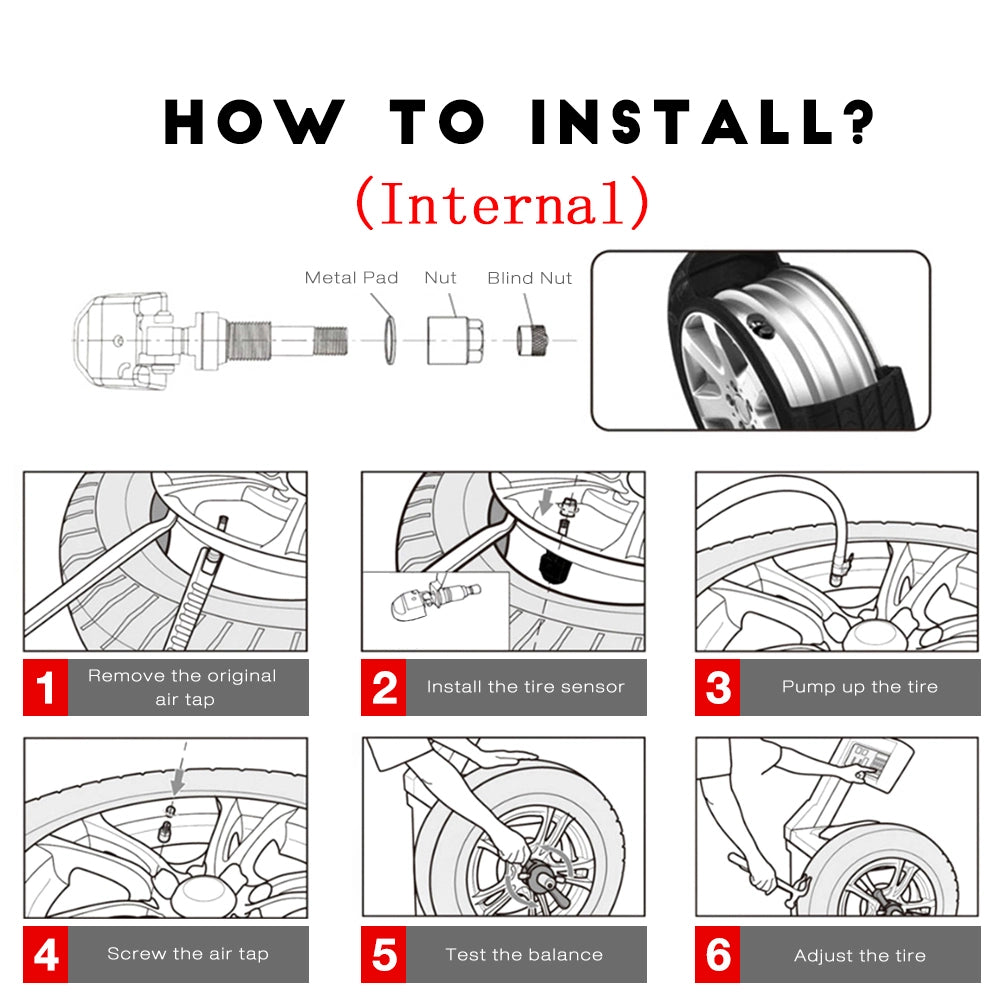

Sensor Installation

1. Remove the original air tap
2. Install tire sensor
3. Pump up the tire
4. Screw the air tap

Tips:

1.Please open the display first, then install 4 sensors. When the driving speed reaches 9MPH or 15KPH, the display will automatically update the tire pressure data.

2. If one of the sensors does not work properly after the first installation, reinstall and wait a while before proceeding.

3. Please test the tire pressure while the car is driving. If the car stops, the TPMS reading is incorrect.
